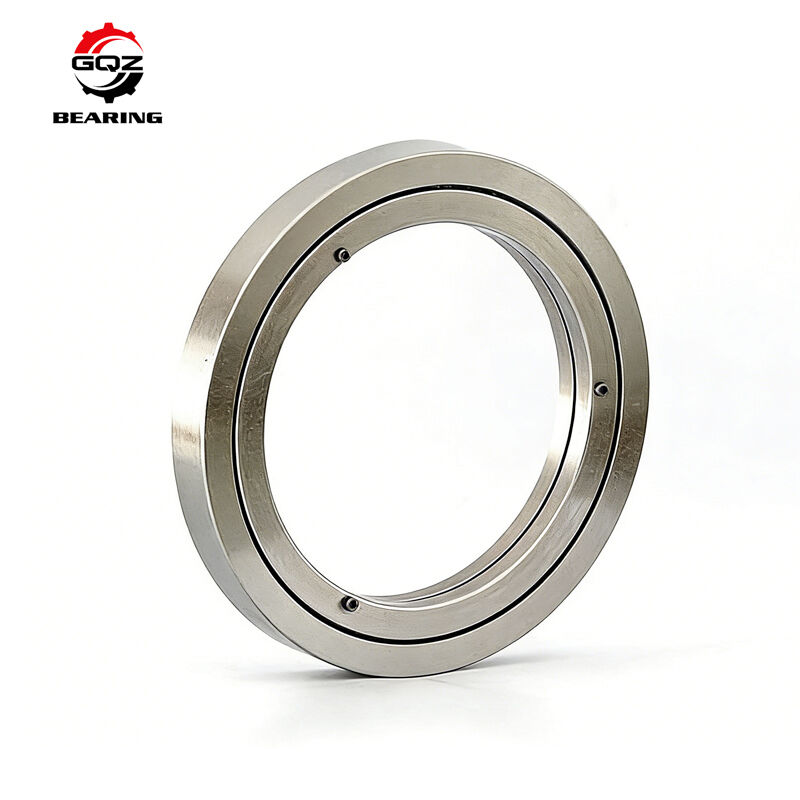

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing

Marka Adı:	GQZ
Model Numarası:	XR836050
Adedi:	5 adet
fiyat:	$1009-$1029
Teslimat süresi:	Ödemenizi aldıktan 3 iş günü sonra
Ödeme Koşulları:	T/T veya Western Union veya PayPal

Ayrıntılı Bilgiler

Ürün Açıklaması

Ayrıntılı Bilgiler

Menşe yeri:

Sertifika:

ISO9001/ISO14001/GJB9001

Malzeme:

GCr15 Rulman Çeliği

Ürün adı:

Çapraz Makaralı Rulman

ID(mm):

Dış Çap (mm):

Genişlik (mm):

Hassasiyet derecesi:

Yapı:

Konik makaralı rulman

Garanti:

12 ay

Ambalaj bilgileri:

Öncelikle kartonda paketlenmiş ve daha sonra dış paketleme için ahşap kasa ile güçlendirilmiş

Yetenek temini:

Ayda 3.000 adet

Ürün Açıklaması

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing

Product Overview

The XR836050 / 600XRN83 Cross Tapered Roller Bearing is a heavy-duty, high-precision bearing designed for robot arms, CNC systems, and large industrial equipment. With dimensions of 600mm inner diameter, 830mm outer diameter, and 80mm width, it offers exceptional rigidity, high load capacity, and stable rotational performance.

Engineered for demanding robotic applications, this bearing provides precise motion control, high torque transmission, and long-term reliability, making it ideal for heavy-load robotic joints and automation systems.

Model: XR836050 / 600XRN83
Size: 600x830x80mm
Type: Cross Tapered Roller Bearing
Large size heavy-duty design
Optimized for robot arm systems

Key Features

Heavy Duty Structure: Designed for high-load robotic and industrial applications.
High Rigidity: Cross tapered rollers minimize deformation under load.
Combined Load Capacity: Supports radial, axial, and moment loads simultaneously.
Dual Model Compatibility: Interchangeable with XR836050 and 600XRN83.
Precision Motion Control: Ensures accurate positioning and repeatability.
Long Service Life: Heat-treated bearing steel for durability.

Technical Specifications

Parameter	Specification
Model	XR836050 / 600XRN83
Inner Diameter (ID)	600 mm
Outer Diameter (OD)	830 mm
Width (H)	80 mm
Type	Cross Tapered Roller Bearing
Structure	Crossed Tapered Rollers
Material	Bearing Steel
Preload	Custom
Accuracy Class	P5 / P4 optional
Application	Robot Arms, CNC Machines, Heavy Equipment

Applications

Robot Arms – High rigidity for heavy-load robotic joints.
Industrial Robotics – Precise and stable motion control.
CNC Machine Tools – Reliable machining performance.
Heavy Equipment – Suitable for extreme load environments.

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing 0

Timken	KG	d	D	B	r	Cr (KN)	Co (KN)	Cr (KN)
-	4.9	150	230	30	1	95.2	156	111	279	1100
-	5.15	160	240	30	1.1	96.8	162	118	300	1000
-	6.7	200	280	30	1.5	102	175	120	320	9000
XR496051	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
XR496052	5.59	203.2	279.4	31.75	1.5	110	188	134	348	850
-	5.4	240	300	30	1	88	184	114	361	750
-	4.5	250	310	25	1	88	188	114	361	700
-	13	250	350	40	1.3	187	355	228	657	670
JXR637050	12.5	300	400	36.492	1.5	183	355	223	657	560
JXR637050	12.5	300	400	37	1.5	183	355	223	657	560
JXR678054	38	300	480	60	1.5	258	495	35	920	600
JXR652050	19.5	310	425	45	2.5	216	427	281	837	640
JXR678052	32	330.2	457.2	63.5	3.3	264	515	312	954	620
-	27	350	470	50	3.3	308	635	376	1180	560
JXR699050	30	370	495	50	3.3	93.6	-	119	-	600
-	15	400	480	40	1.1	216	497	281	957	430
-	46.5	400	550	60	2.5	429	920	523	1700	400
XR736052	27.5	432.003	571.5	38.1	3.3	83	910	530	1600	400
JXR766051	51	457.2	609.6	63.5	3.3	396	856	514	1680	420
JXR766052	62	424.95	614.924	65	3.3	470	960	600	1720	380
JXR820060	100	580	760	80	3.3	627	1380	765	2560	300
JXR820061	100	580	760	80	6.4	627	1380	765	2560	300
JXR836050	148	600	830	80	6.4	680	1460	820	2870	300
JXR8444050	150	685.8	914.4	79.375	6.4	693	1660	900	3250	260
JXR855053	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR855056	150	685.8	914.4	79.375	3.3	693	1660	900	3250	260
JXR882054	185	901.7	1117.6	82.555	3	781	2060	1060	4290	200
JXR882055	185	901.7	1117.6	82.555	3.3	781	2060	1060	4290	200
JXR882058	158	939.8	1117.6	82.55	3	920	2580	1200	5000	200
-	215	950	1170	85	3	968	2690	1310	5600	215
JXR889058	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
JXR889059	358	1028.7	1327.15	95.25	3.3	1060	3100	1420	6020	450
JXR889060	430	1028.7	1327.15	114.3	3.3	1230	3310	1600	6490	430
-	350	1270	1524	95.25	3.3	1300	3830	1760	2980	95
JXR897051	500	1549.4	1828.8	101.6	3.3	1400	4510	1890	9400	80
-	675	1879.6	2197.1	101.6	5.4	1510	5240	2040	10900	43
-	1130	2463.8	2819.4	114.3	5.4	2330	8740	3150	18200	18200

Why Choose GQZ Bearing?

Precision Manufacturing Expertise
Stable Quality & Performance
Flexible Customization Options
Fast Delivery & Global Supply

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing 1

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing 2

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing 3

High precision XR836050 600XRN83 Cross Tapered Roller Bearing 600x830x80mm Robot Arm Bearing 4

Q1: What is the difference between cross roller and cross tapered roller bearings?

A1: Cross roller bearings use cylindrical rollers for higher precision, while tapered rollers provide higher load capacity.

Q2: Is XR820061 suitable for robotic applications?

A2: Yes, it offers high precision and rigidity for robotic systems.

Q3: Do you support customization?

A3: Yes, we offer customization for preload, precision grade, and materials.

Upgrade your system with XR820061 Cross Roller Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
